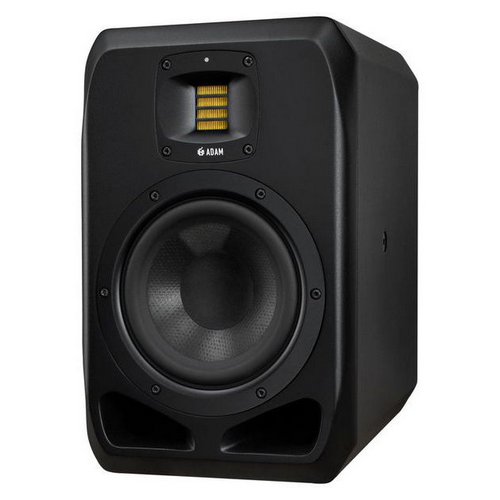

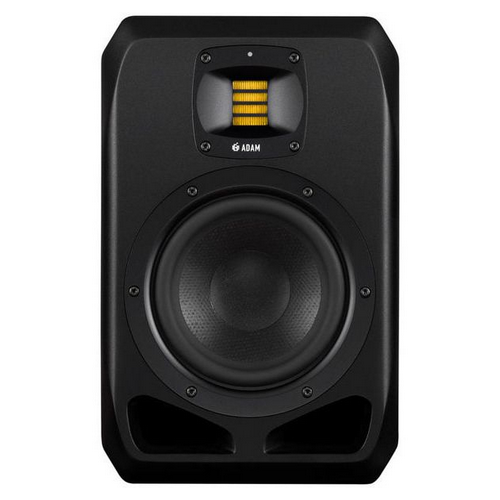

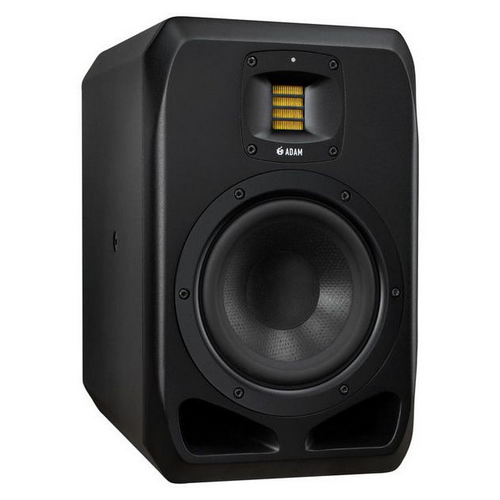

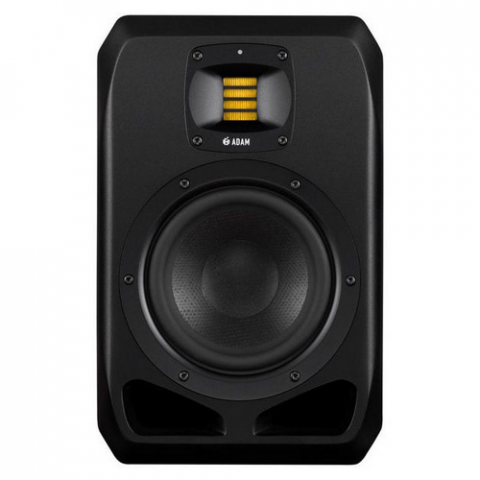

ADAM Audio S2V

Specificatii:

Woofer

• Șasiu Ø: 7” (175 mm)
• Bobina mobila Ø: 1.5" (38 mm)
• Material Con: HexaCone

Tweeter

• Tip tweeter: S-ART
• Arie diafragma: 4 inch² (2420 mm²)
• Echivalent diagragma Ø: 2" (56 mm)
• Ratia transf. velocitate: 4:1
• Greutate diafragma: 0.17 g
• Waveguide: HPS

Amplificatoare incorporate

• Tip amplificator woofer: PWM
• Tip amplificator tweeter: A/B
• Putere amplificare RMS: 350 W (300 woofer+50 tweeter)

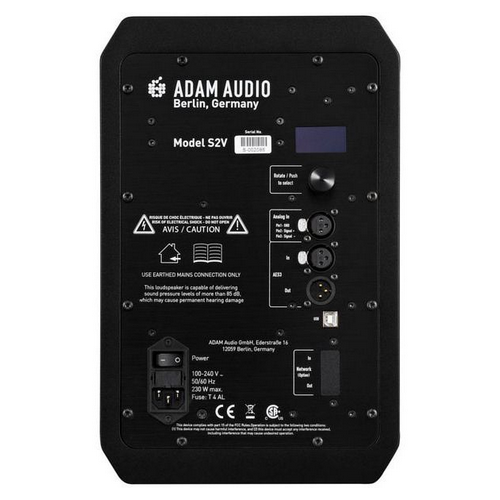

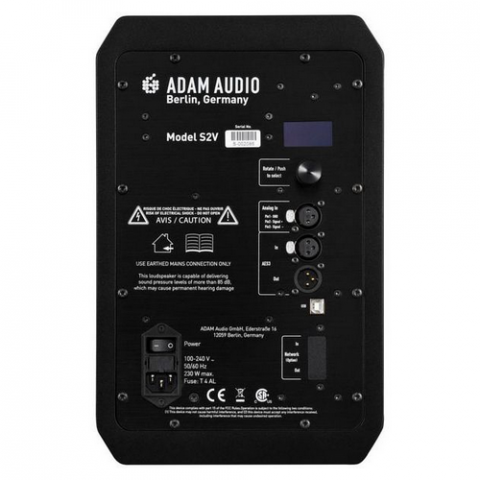

Panou Control

• Sensibilitate intrare: Reglabila
• EQ parametrice: 6
• Compensare inalte: 1
• Compensare joase: 1
• Memorii predefinite: 5
• Delay: 0 ms pana la 5 ms

Conectori intrare

• Analog: XLR
• Impedanta Intrare: 48 kOhm
• Nivel maxim intrare: +24 dBu
• Digital: AES3

Specificatii generale

• Panou: lateral
• Frecventa de raspuns: 35 Hz - 50 kHz
• THD > 100 Hz: ≤0.4 %
• SPL maxim / pereche la 1m: >120 dB
• Frecventa crossover: 3 kHz
• Greutate: 11 kg
• Dimensiuni: 346 x 222 x 338 mm
• Include: cablu de alimentare, manual
